Product Overview

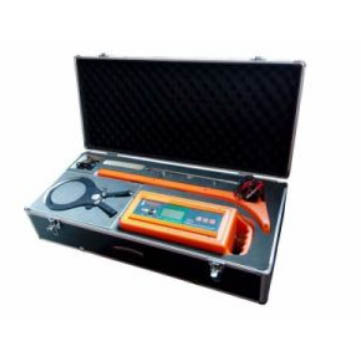

Adapts advanced technology, SXGX Underground Cable Detector is the most effective device to detect underground utilities of gas, electric power, telecom, water supply, drainage, cable television and etc.

Features

  • ♦ Portable designation, suitable for wild field testing.

  • ♦ Full digital control, easy to control.

  • ♦ English graphic display.

  • ♦ Transmitter designed with over load and overheating protection.

  • ♦ To detect the location and depth of underground cable accurately, also is available for branch pipe or network construction underground cable.

  • ♦ Two detect methods: AC current gradient method and ground electric field method.

  • ♦ To locate and detect depth of underground cable synchronously.

Specifications

  • Receiver:

  • ♦ Working frequency: low frequency, intermediate frequency, high frequency, radio frequency. 50Hz, passive AC frequency.

  • ♦ Antenna mode: wave trough (vertical coil), wave crest (horizontal coil)

  • ♦ Sound indicator: changed according to signal’s intensity.

  • ♦ Current indicator: To display test cable’s valid current value(mA)

  • ♦ Working temperature: -10°C——40°C

  • ♦ Rechargeable battery.

  • ♦ Low battery indicator.

  • ♦ Battery life：Continuously working >8 hours. Intermittent working >16 hours.

  • ♦ Oversize：70×20×11CM

  • ♦ Weight：3kG (include batteries)

  • ♦ Signal intensity indicator: ladder diagram, digital range 0——999

  • ♦ Gain control: to adjust by manual, dynamic range:100db

  • ♦ Maximum depth: not less than 5 m. (direct connection method)

  • ♦ Max. detecting distance: 15kM (direct connection method)

  • ♦ Depth measuring: Push depth button, three digit display, maximum depth can reach to 2.5m.

  • ♦ Precision: low frequency ±（1—5）%≤2.5m, radio frequency: ±（5—12）%≤2.5m.

  • *Depends on the environment, the quantity of the adjacent pipeline and return current of soil.

  • Transmitter:

  • ♦ Working Frequency: low frequency, intermediate frequency, high frequency, radio frequency.

  • ♦ Working mode: direct connection method, coupled method, inductive method.

  • ♦ Matched Load: 5 Ω~3000Ω

  • ♦ Impedance display: 5 digits.

  • ♦ Power output: Low, intermediate, high (max. output power not less than 5W)

  • ♦ Rechargeable battery.

  • ♦ Battery life: continuously working 8~16 hours, depends on the frequency and output power.

  • Intermittent working 12~24 hours, depends on the frequency and output power.

  • ♦ Working temperature: -10°C—40°C

  • ♦ Oversize: 16×16×39CM

  • ♦ Weight: 4 kG (include batteries)
