Product Overview

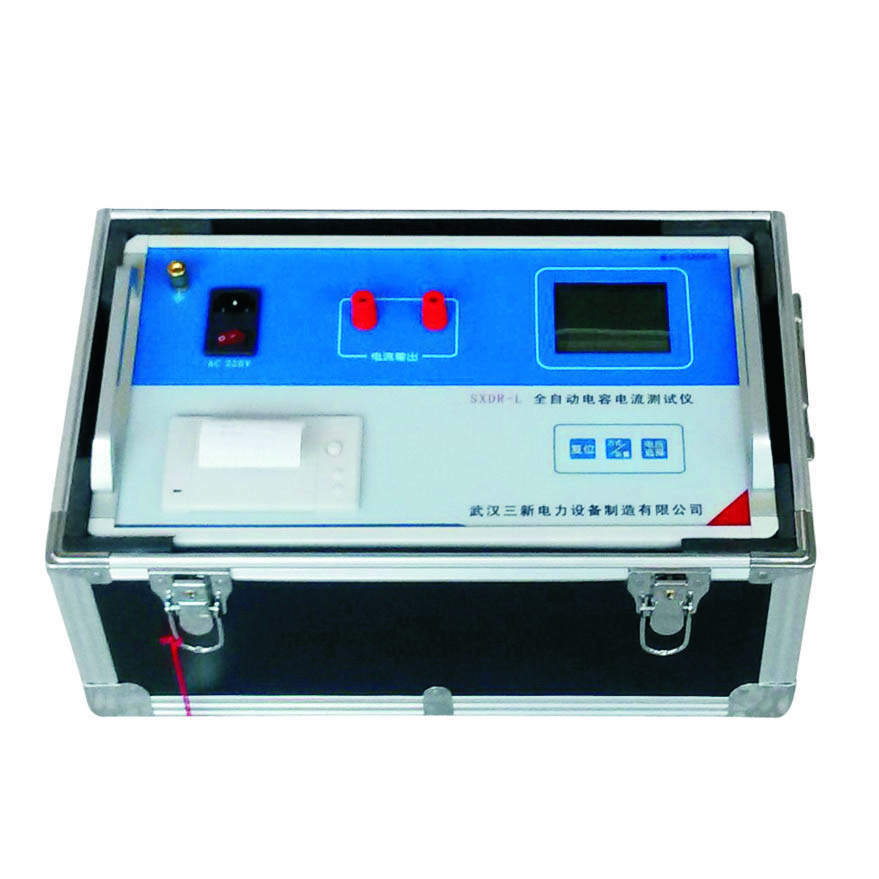

SXDR-L Capacitance Current Tester is the best choice to test capacitive earth current of distribution network.

Features

  • ♦ Advance principle: PT secondary side open delta pilot frequency inductance test.

  • ♦ Easy connection: Input leads via PT secondary site open delta.

  • ♦ Safe and reliable: Low voltage operating, pilot small signal, no interference on PT protection and measuring signal.

  • ♦ Conveniently using: test without power outage.

  • ♦ Easy to operate: LCD screen, English interface.

Specifications

  • ♦ Capacitance current measuring range:

  • Three phase total earth current：1A～250A

  • Three phase total earth capacitance：0.3μF～125μF

  • ♦ Measuring error: when CX<90μF，measuring precision ≤5%

  • When CX>90μF，measuring precision＞5% （CX>90μF is not exist on site）

  • ♦ Working temperature: -10℃～50℃

  • ♦ Working humidity: 0～80%

  • ♦ Working supply: AC 220V±10% 50Hz±1Hz

  • ♦ Oversize: 350mm×200mm×150mm

  • ♦ Weight: 2.5kg

  • ♦ Distribution network voltage degree：1kV~66kV
